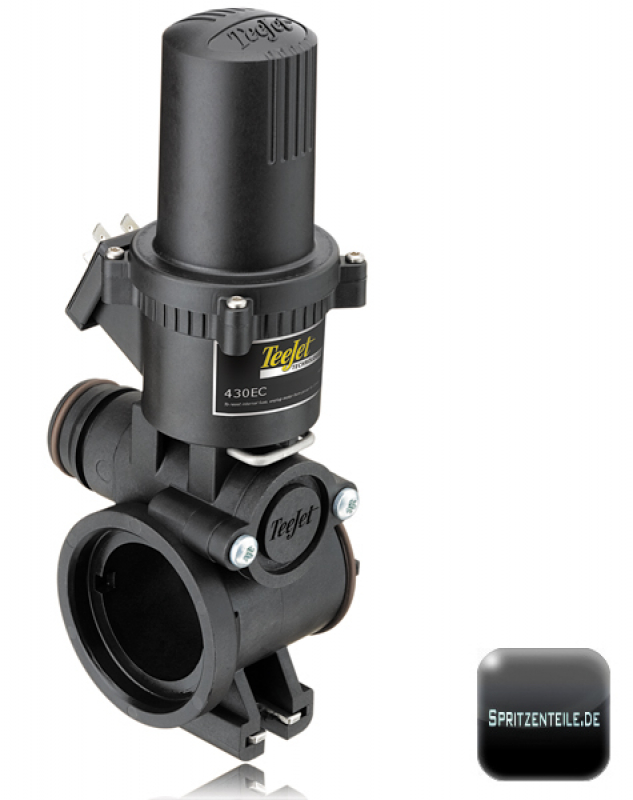

The valve block 430 Series with 2-way valve offers the proven reliability of a ball valve in a very compact design. 430er this valve allows for easy and reliable on / off circuit and is available in various versions for many configurations on the sprayer also as a single valve in the drill.
Product Features:
- Ball valve, 1/4-turn for shutoff (connected open)
- Switching time of 0.6 seconds closed to fully open
- Continuous low current consumption at 12 V DC system than 0.5 A
- Motor designed with IP67 connector for mini-DIN connector type
- Motor versions available in EC (3-wire) or E (2-wire)
- Transmission guarantee full metal ball and shaft in stainless steel high performance operation
- Large cross section for various input side QC Quick Connectors
- Outgoing side diverse QC Quick connectors (straight, 90°)
- Maximum operating pressure of 15 bar (215 PSI)
- Flow rate: 44 l / min (11.7 GPM) 0.34 bar (5 psi) pressure drop, 63 l / min (16.5 GPM) at 0.69 bar (10 PSI) pressure drop.
- Wetted parts are polypropylene, stainless steel, Viton® and Teflon®
- Integrated mounting rail for mounting on the sprayer
- Also available as a 3-way valve with constant pressure valve and pressure relief
Please configure your desired valve unit.
