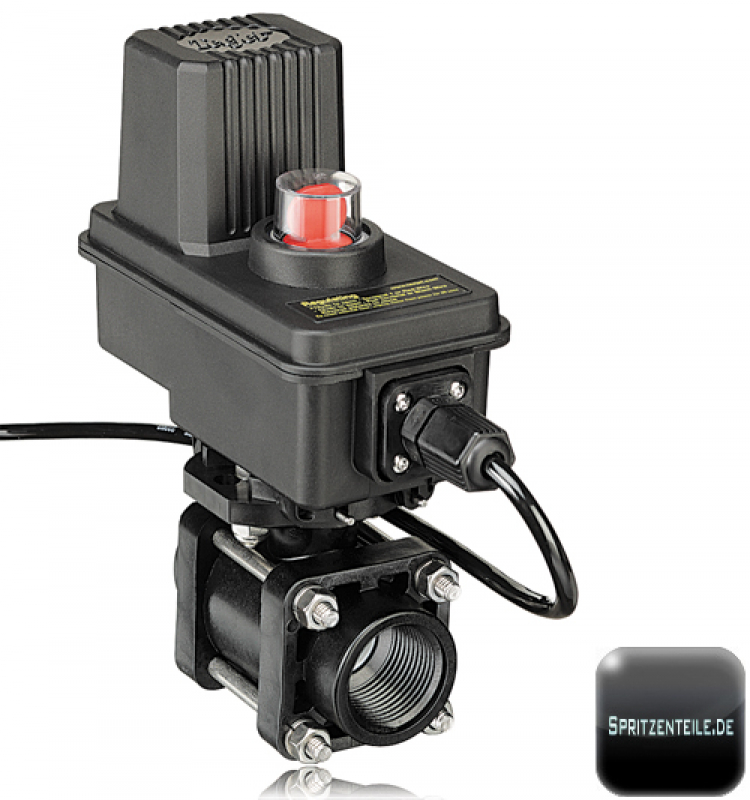

The Electrical Control Valve Series 344B equipped RL specially designed valve from Spraying Systems that allows an earlier regulation and thus extends the control range. This ball-control valves are used for the linear flow control to the shutdown. Model is available in different versions (on request different engine speeds available) to meet the diverse requirements of different applications.
Product Features:
-
- Engine speed 3 U / min, 6 second shutoff fully open to fully closed
- Different input / outlets can be quickly installed for individual valves
- These valves are also available on request as a three-way design
- Two-way valves close the line, three-way valves open a bypass, for example, flyback
- The drive shaft is made of stainless steel, the ball either plastic or stainless steel
- Maximum operating pressure is 20 bar
- Maximum flow rate of the two-way valve is 102 l / min
- The liquid conducting parts of this Teejet ball valves are made of Teflon, polypropylene, stainless steel and Viton
- Low power consumption, less than 1 A, two-wire cable for easy installation at 12 V DC systems
- Wiring connectors: Specific electrical connector syle and pin-outs. If no connector is needed leave blanc (see also Download)
Please configure your desired valve.
