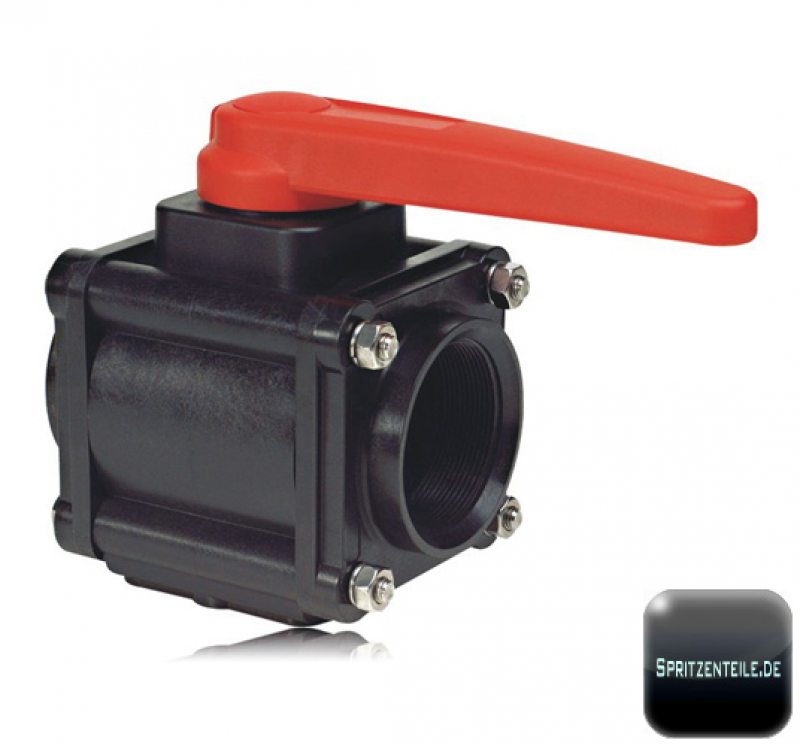

Manual 2-way ball valve from Arag reinforced polypropylene with ball in PP – AISI316-steel and UHMW-PE ball on request.
- ¼ turn of handle from shutoff to full flow
- Both sides with clamping nuts for readjustment
- Maximum operating pressure 10 bar / 150 PSI
- Ball seat TEFLON ®
- EPDM seals at ball PP
- Viton® seals at ball AISI316-steel and UHMW-PE
- BSPT threaded connection 1 ½" or 2" female available
- Screws and bolts made of stainless steel
- Two threaded drilling for mounting with screws
- By turning the clamping nuts and loosening of the handle, the ball valve can be completely disassembled
- Spare parts on request
Please select thread size and material of ball.
