Mueller-Elektronik TRACK-Guide III with AG-200 GNSS receiver incl. ISOBUS-UT an ISOBUS-TC APP
TRACK-Guide III is a parallel driving system equipped with an 8" display and capacitive touch screen that guarantees simple and intuitive operation. TRACK-Guide III can be expanded in many ways, including automatic steering or even a full ISOBUS terminal with order processing and automatic boom section control.
TRACK-Guide III set including
ISOBUS-UT and -TC APP as well as SECTION-Control and TRACK-Leader APP
Flexibility and future-proofing are unbeatable advantages of the APP & GO® concept. You as the user have selected your terminal that meets your requirements. In addition to the activated standard apps, further pre-installed apps can be activated as required.
Test now for free!
Attention: This product we ship with DHL only ID card-based identity verification of the recipient !

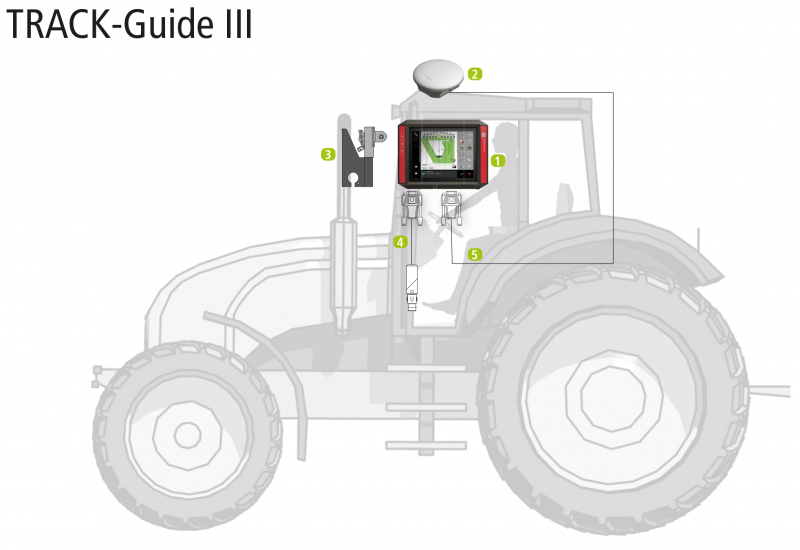

Scope of delivery TRACK-Guide III Set:
Technical specifications of the terminal
Available apps for TRACK-Guide III:
- TRACK-GUIDE III
- DGPS/Glonass receiver AG-200
- Basic console
- Power cable
- Connection cable GPS receiver to ME terminal, 6 m
- Camera connection
Technical specifications of the terminal
| Operating valtage | 10 V to 32 V |
| Power consumption (operation) | 0,5 A (typical) to 4 A |
| Power input | Typical: 6 W Maximum: 40 W |
| Ambient temperature | -20° C to +60° C |
| Storage temperature | -30° C to +80° C |
| Dimensions (W x H x D) | 243 mm x 186 mm x 69 mm |
| Weigt | 1,1 kg |
| Protection class | IP6K4 according to ISO 20653:2013 |
| EMC | ISO 14982 |
| ESD protection | ISO 10605:2001 Level IV |
| Inviromental testing | Vibration: ISO 15003 Level 1 with Level 2 temperatur overlap in accordance with ISO 15003 Shock: 100 shocks per axis and direction with 15 g and 11 ms in accordance with IEC 60068-2-27 |
| Processor | i.MX 515 600 MHz |
| Coprocessor | STM32F205 |
| Storage | 256 M mDDR |
| Bootflash | 128 M SCL-NAND-Flash |
| Operating system | WinCE 6.0 |
| Display | 8" SVGA TFT |
| Housing | PC-ABS |
| Inputs / Outputs | 1 x USB 1 x D-Sub 9 socket (CAN and powe supply) |
Available apps for TRACK-Guide III:
- TRACK Leader: Parallel drive display with documentation (included in the standard package)
- ISOBUS-UT: ISOBUS machine steering (included in the standard package)
- ISOBUS-TC: ISOBUS task processing
- MULTI-Control: Complex operations simultaneous multiple application
- TRACK-Leader AUTO: Automatic steering
- SECTION-Control: GPS-controlled part width section control
- ASD: serial interface with the ASD protocol
- TRAMLINE-Management: Visualization TRACK-Leader display
- VRC: application map processing of shape files
- Operating instructions (2.95 MB)
- Quick Reference Guide (182.4 KB)
