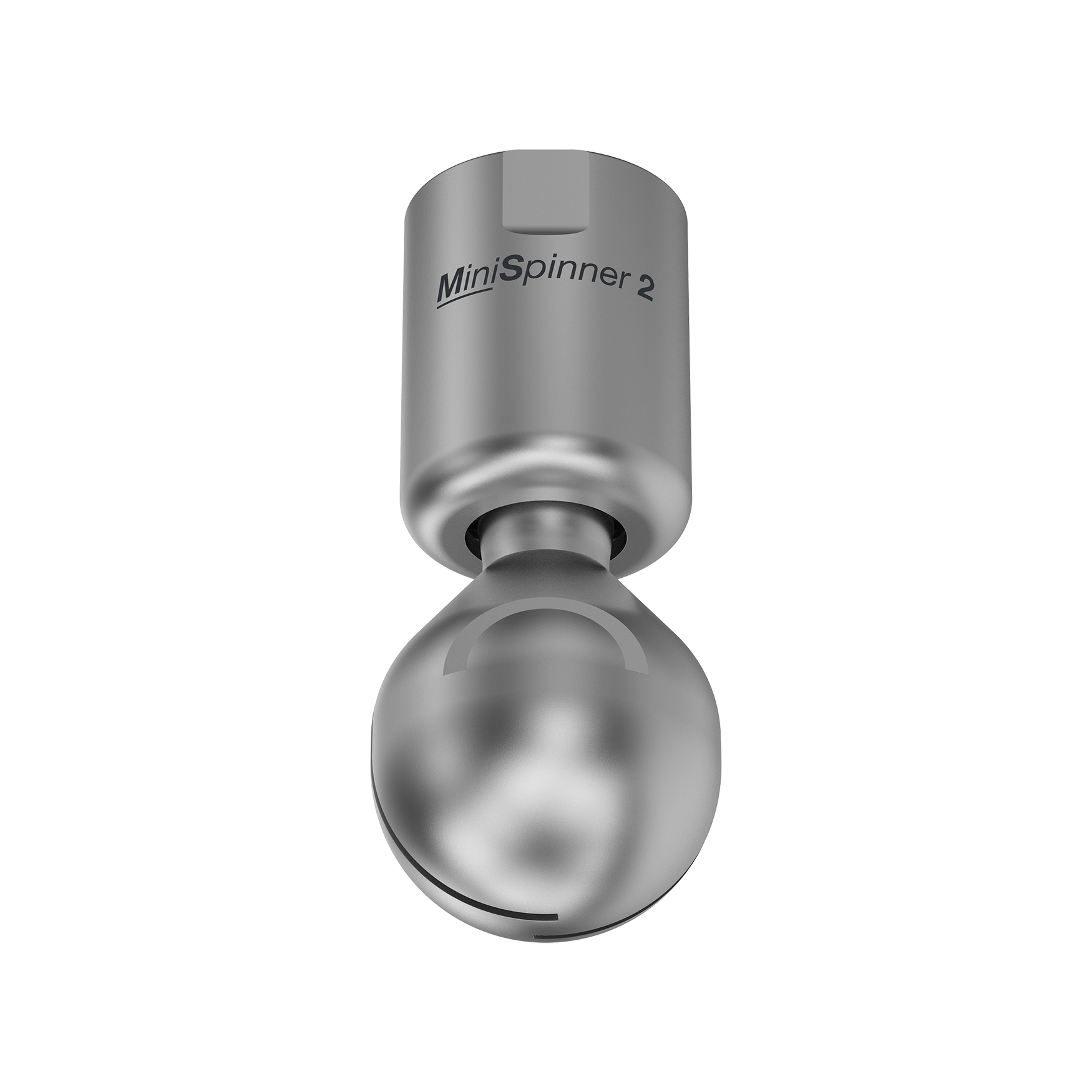

The MiniSpinner 2 convinces with its popular design and effective cleaning. The MiniSpinner 2 is made entirely of stainless steel and is also designed for high ambient temperatures. Available in many different volume flows and spray angles.
Features:
Hygienic design
Suitable for high temperatures
Made entirely of stainless steel 1.4404 (316L) or 2.4602 (Alloy 22)
Technical data:
Cleaning efficiency class 2
Max. Temperature 250 °C
Installation Operation in any installation position
Bearing Double ball bearing made of stainless steel 1.4404 (316L), 2.4602 (Alloy 22)
Material Stainless steel 1.4404 (316L), 2.4602 (Alloy 22)
Recommended operating pressure 2 bar
Pre-filtration in-line filter with 0.1 mm/170 mesh
Adapter G ½ ISO 228 and G ¾ ISO 228 (NPT thread) is compatible with HygienicFit
ATEX Approved for use in a potentially explosive atmosphere.
