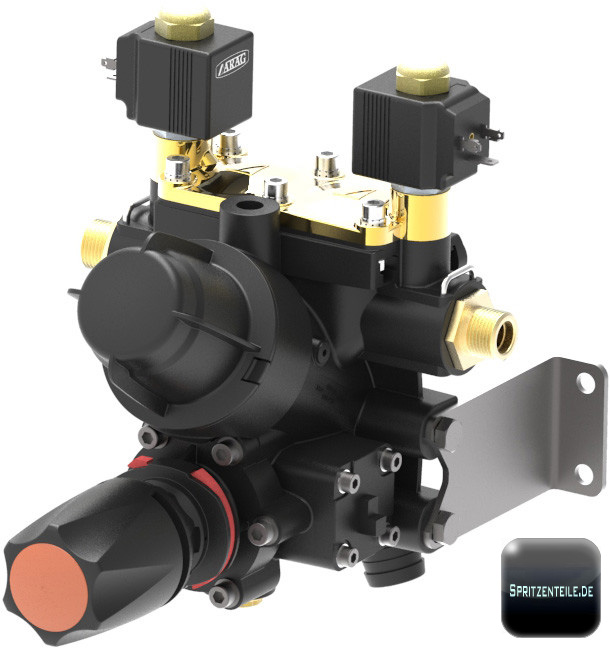

The new control units with solenoid valves are designed to be connected with computerized electrical systems for spraying and row spraying closing. These units, very compact and made of highly resistant materials, consist either of 2 / 4 or 6 section valves.
- Very compact
- Parts in fibreglass reinforced Nylon®, brass and stainless steel
- Teflon® seals
- Normally closed 12 Vdc solenoid valves
- Two solenoid valves into a single modular body
- Brass inlet flange with ¾" threaded external connection
- Brass outlet connectors with ½" threaded external fork connection compatible with all connections of valves series 863
- Max. pressure 40 bar
- Max. flow rate 150 l/min.
Control unit is supplied with:
- manual control valve series 475
- self-cleaning filter, 50 mesh
- ¼" internal thread pressure gauge connection
- 2, 4, or 6 sections
Please choose the numbers of section valves. Fittings in brass see
