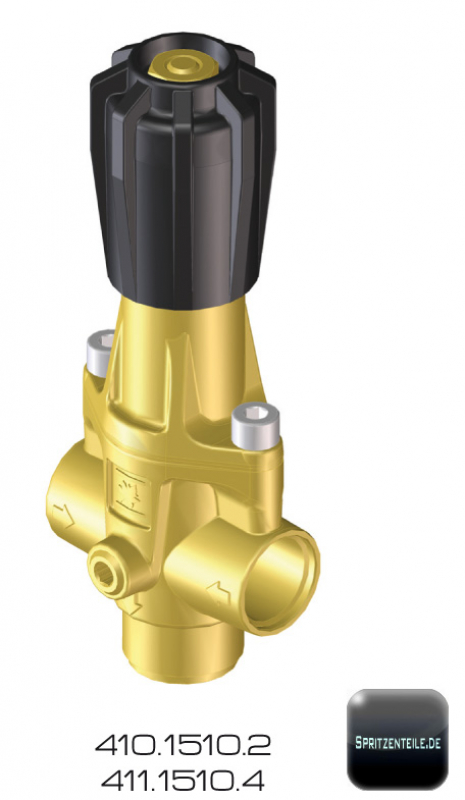

Braglia Pressure Regulator M411 piston with
- ¾" BSP female inlet
- 1" BSP male outlet
Models 41115104 max. operating pressure 50 bar (725 psi) 180 l/min (48 USGal/min) flow rate
Materials: brass and stainless steel – piston and valve seat stainless steel vacuum hardened – Buna N seals - high resistance plastic materials.
Use: on boom and airblast sprayers. Pressure adjustment by passing excess liquid. Used also for pressure relief. Accurate pressure adjusting. Wear and damage proof. For correct use, install as shown.
