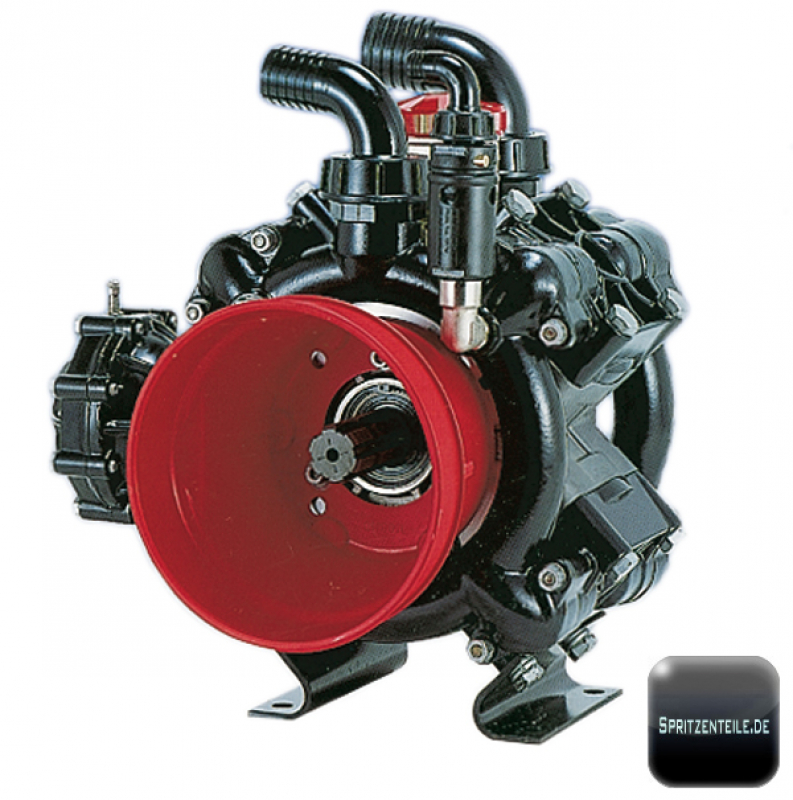

Piston diaphragm pump AR 160 BP with plastic coating at the liquid-carrying metal parts. To use the pump with corrosive liquids such as Herbicides and liquid fertilizers as they are in arable farming use, most suitable and proven. At the diaphragm pump, the drive runs including piston in an oil bath. Through the membrane to come into contact with liquid components are separated. Standard drive with 1 3/8 " PTO, drive shaft guard included.
The pump comes with the following drive types:
- double-sided PTO through drive 1 3/8 "
- V-belt drive currently not available
- mounting parts for hydraulic motor ø 25 mm or 32 mm
Specifications:
- 4 membranes (Blueflex)
- max. 166 l / min flow rate
- max. pressure up to 20 bar
- 6 kW output
- max. 550 U / min
- Inlet connection 1½ " with spout ø 40 mm
- Outlet connection 1" with spout ø 25 mm
- Weight 27.5 kg
Here you find suitable
hose nozzles with union nut.
