Centrifugal pump Series 9303P manufacturer Hypro from USA, is equipped with hydraulic motor drive (for open and closed systems) and mounting feet. The housings is available in polypropylene and compatible with corrosive, abrasive and general use chemicals.
- Pump connection sizes:
- Inlet 1 1/2" NPT female
- Outlet 1 1/4" NPT female
- Pump seals as standard:
- Viton / ceramic
- Life Guard®-Siliciumcarbid (B) and Buna-N-Ceramic on request
- Maximum liquid temperature 60 ° C
- Impeller
- Hydraulic connection sizes HM series (Gerotor motor with internal gear):
- Inlet 1/2" NPT
- Outlet of 3/4" NPT
- Hydraulic motor seal: double-lipped Teflon
- Max pressure up to 8,9 bar

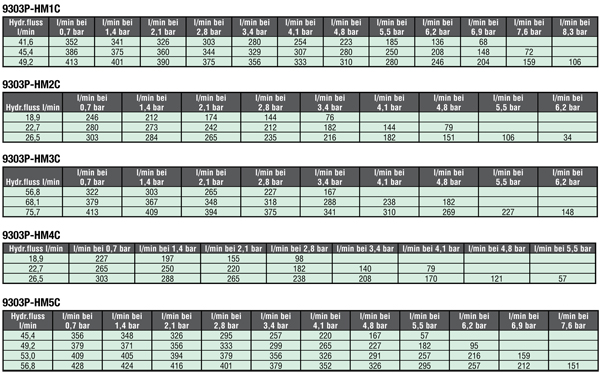

Motor related output tables see in the image!
