Comet high pressure pump APS 31 - 40 bar
High-pressure pump from the manufacturer Comet with 3 cylinders, for max. 40 bar working pressure and a flow rate of approx. 25,0 l / min. Quick inspection of suction and delivery valves. Equipped with 6-hole plate. Here you have the possibility to select different flange variants to connect for example a motor for hydraulic actuators. Matching motors are not sold by us. Delivery takes place with pump base, without pressure regulator and optional with safety valve and cardan shaft protection.
- Connection suction tail elbow ø 25 mm.

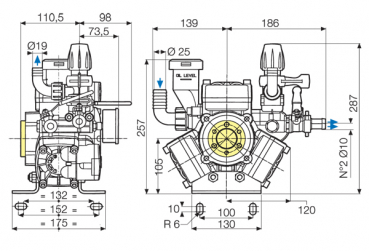

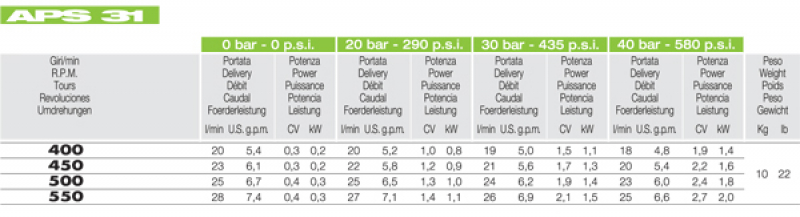

Technical data and spare parts for download or order spare parts here. Please select Flange Kit (connection variant see figure !)
Recommendation for suitable power units at hydraulic drive:
Recommendation for suitable power units at hydraulic drive:
- Danfoss
- Typ: MP32 - OMPA32 - OMP40 - OMPA40 - OMP50 - OMR50 - OMRA50
- Eaten Char-Lynn
- Typ: H-Plus 35 - S-Plus 60 - T-Plus 60 - Serie 2000 80
