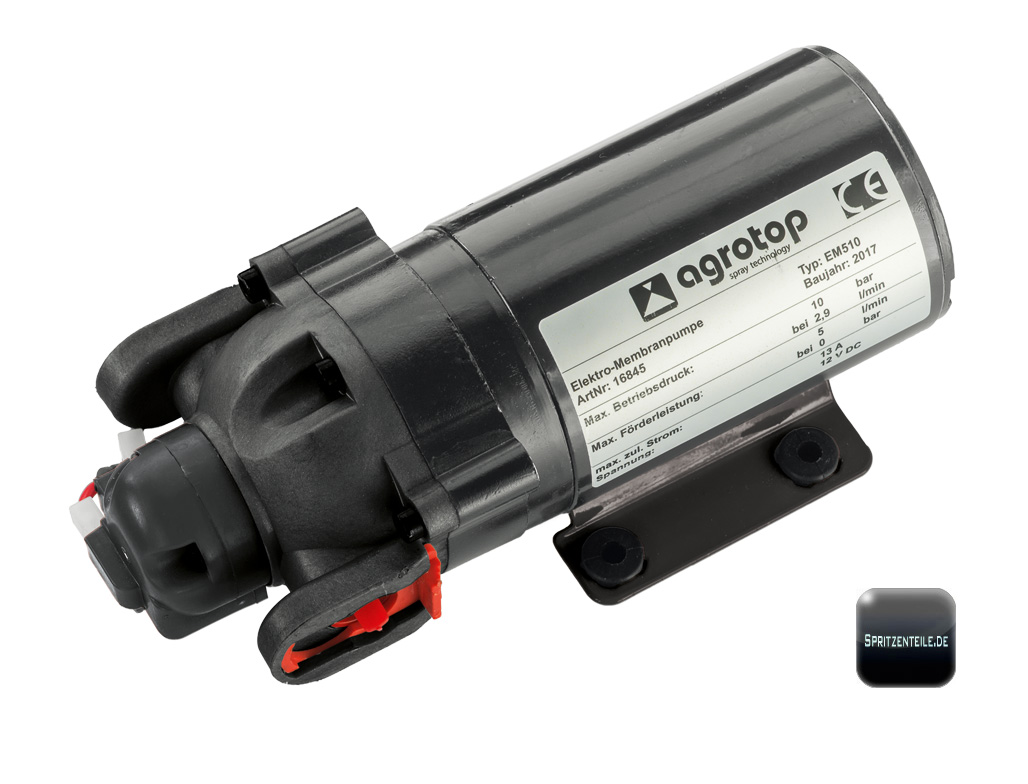

The Agrotop diaphragm pump EM510 with three membranes is flanged to a 12 Volt DC motor. The robust and compact design of the pump is ideal for pesticide solutions such as use in small portable devices and sprayer for special applications. This small electric pump is equipped with a pressure switch, which interrupts the power supply at overpressure. Supplied with plug connections on the pressure and suction side:
- 2x plug connection straight with ø 10 hose nozzle
- 1x plug connection straight with ½" external thread
- Max. flow rate 4.3 l / min. – max. pressure up to 10.0 bar at 12 V / 10 A drive – EPDM membrane
