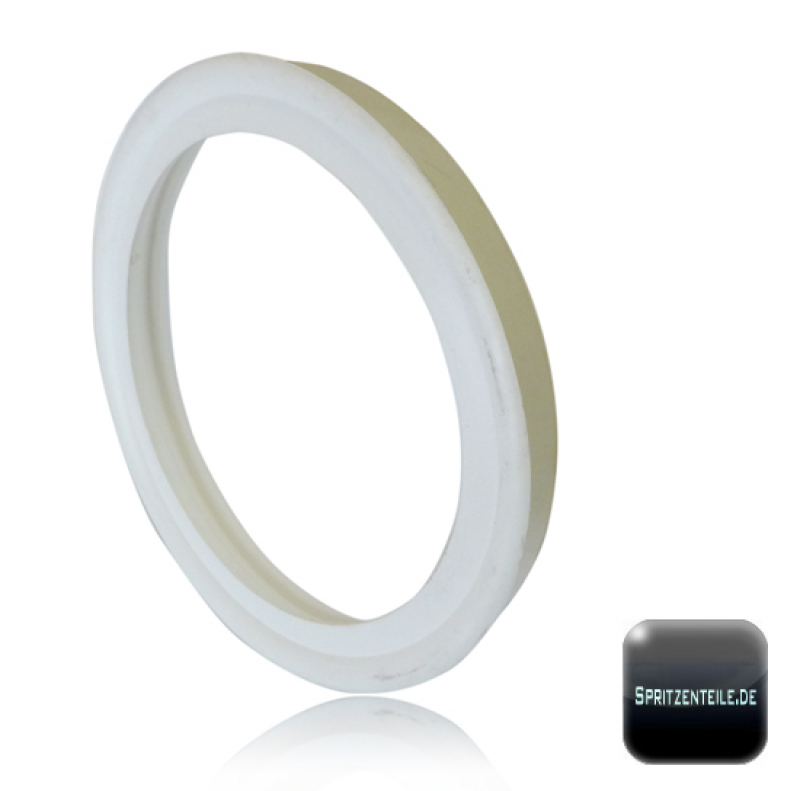

The replacement seal rings for Storz couplings in the delivery and suction operation are made of nitrile rubber and hollow inside. Here you can select the correct replacement gasket size.
Available nominal sizes and dimensions (a x d x h in mm):
- Nominal size 25-D DIN 14301, dimensions 29 x 18 x 9 mm
- Nominal size 38, size 39 x 25 x 9.8 mm
- Nominal size 52-C DIN 14321, dimensions 60 x 47 x 10 mm
- Nominal size 65 NENORM, dimensions 75 x 60 x 10 mm
- Nominal size 75-B DIN 14322, dimensions 82 x 67 x 10.5 mm
- Nominal size 100, size 108 x 93 x 10 mm
- Nominal size 110-A DIN 14323, dimensions 124 x 102 x 12 mm
- Nominal size 125, dimensions 139 x 117 x 12.5 mm
- Nominal size 150, dimensions 152 x 132 x 11.5 mm
