Arag valve unit electric series 863T constant pressure

Product No.:: AR863T0120
Shipping time:: if in stock 5-8 days (abroad may vary)
Stock:: pieces
Weight:: 1.8 kg per piece

Hose connection ø:

(5) Number of boom sections:

(6) Return pressure collector left:

Our standard price 799,42 EUR
Your price from 559,59 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

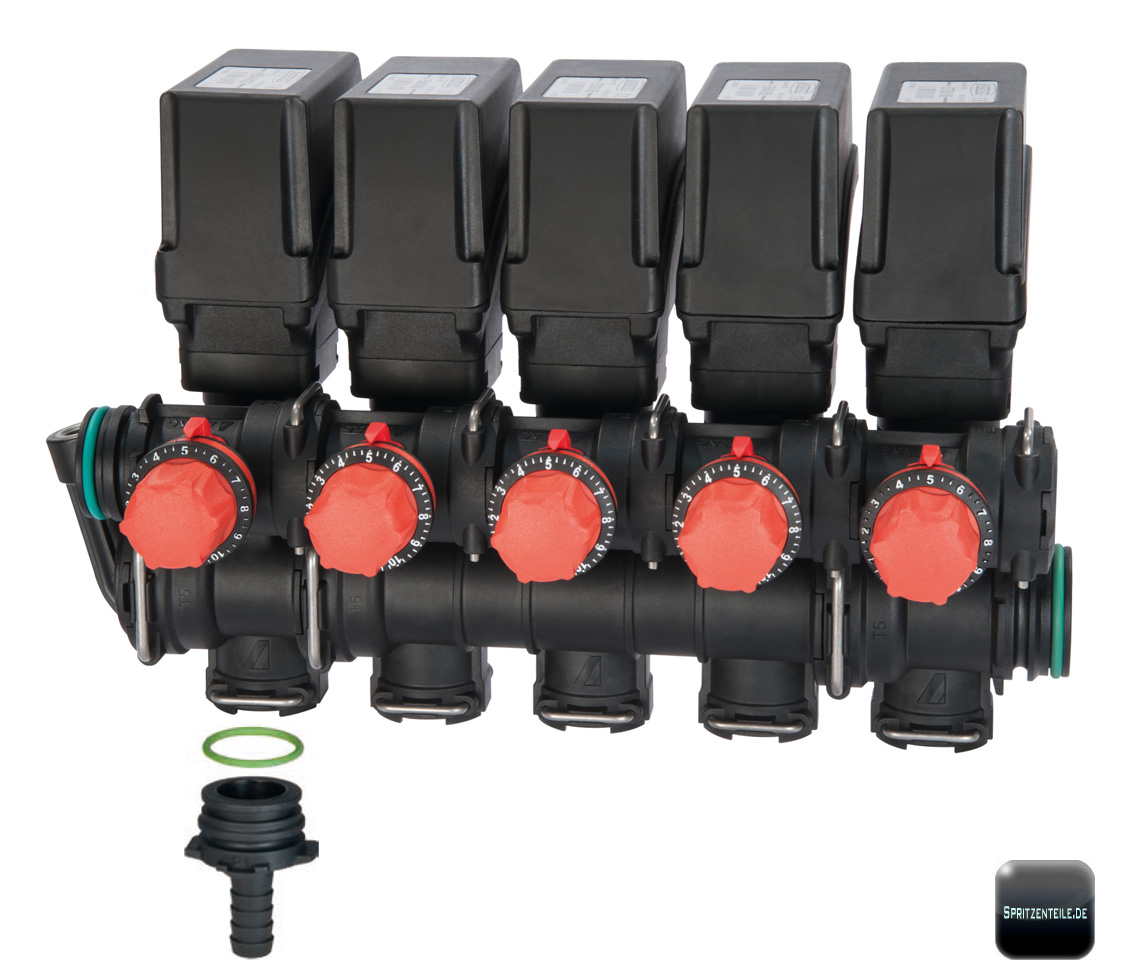

Arag series 863T electric valve unit with constant pressure collector and T5 fork connection consists of 863T011 valves, delivery with or without fittings for the outlets.

From 2 to 7 sections available
Housing made of glass fiber reinforced Nylon®
Internal parts made of Delrin® and stainless steel AISI 303
Seals made of Viton®
Resettable internal fuse (cut off power supply for 20 seconds)
Power supply 12 Vdc 0.5 A
Valve type BY-PASS, closing time 0.6 sec
Flow rate at 0.5 bar is 50 l / min / 13 US GPM
Pressure range up to 20 bar / 290 PSI

If supplied with hose fitting, please select size of hose fitting with T3 fork connection for outlet.

T4 fork connections for the constant pressure collector please order separately here:

Straight hose connections with different grommets ø
Curved hose connections with different grommets ø

Information Produktsicherheit

Arag S.r.l. con socio unico
Via A.Palladio 5/A
42048 Rubiera - Reggio nell'Emilia - ITALY

T: +39 0522 622011
customerservice-RUB@nordson.com
www.aragnet.com

Documents

Spare parts list Arag valve unit electric series 863T constant p (806.48 KB)
