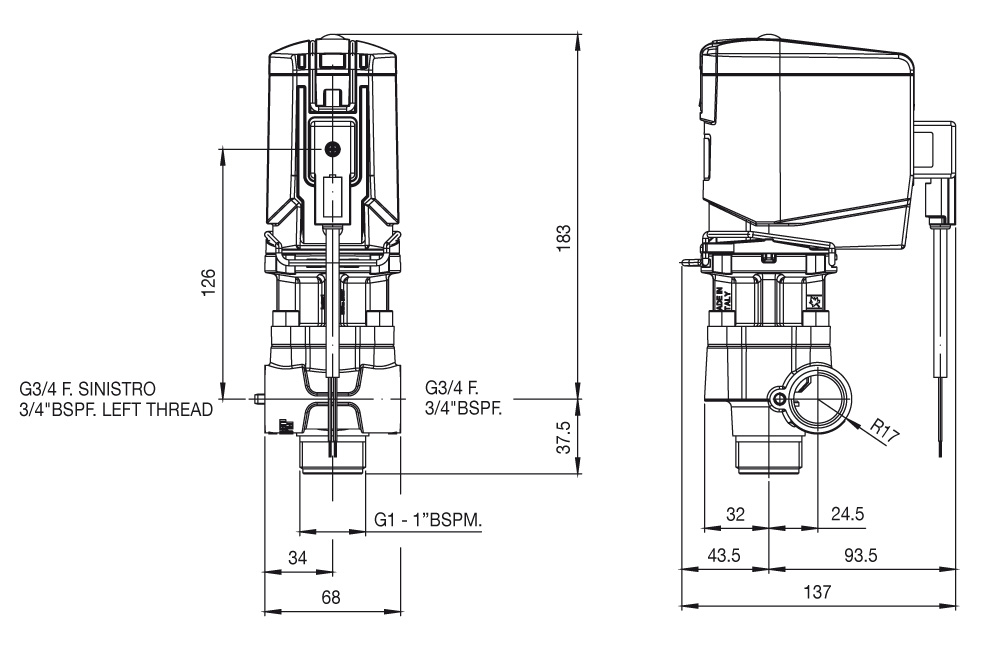

Braglia Constant pressure regulating valve. Modular with M200 valve series. Diaphragm and o ring separates fluid from moving parts. With on board electronic limit switches. High sensitivity, accuracy and repeatability. When section valves are switched off, holds constant working pressure between 10% variation.
- Max. operating pressure: 40 bar (580 psi)
- Timing P0 - Pmax.: 16 s
- Max. flow rate: 150 l/min (39.6 USGal/min) with 4 bar (58 psi) pump circuit residual pressure 100 l/min (26.4 USGal/min) pump circuit residual pressure: 2 bar (29psi)
- 12Vdc motor
- 1.5 m cable
Materials:
brass - stainless steel - aluminium with cataphoresis coating - high resistance plastic materials - vacuum hardened stainless steel piston and seat - FKM seals
Use:
on airblast sprayers. Excellent for both manual and computer driven pressure regulation.
