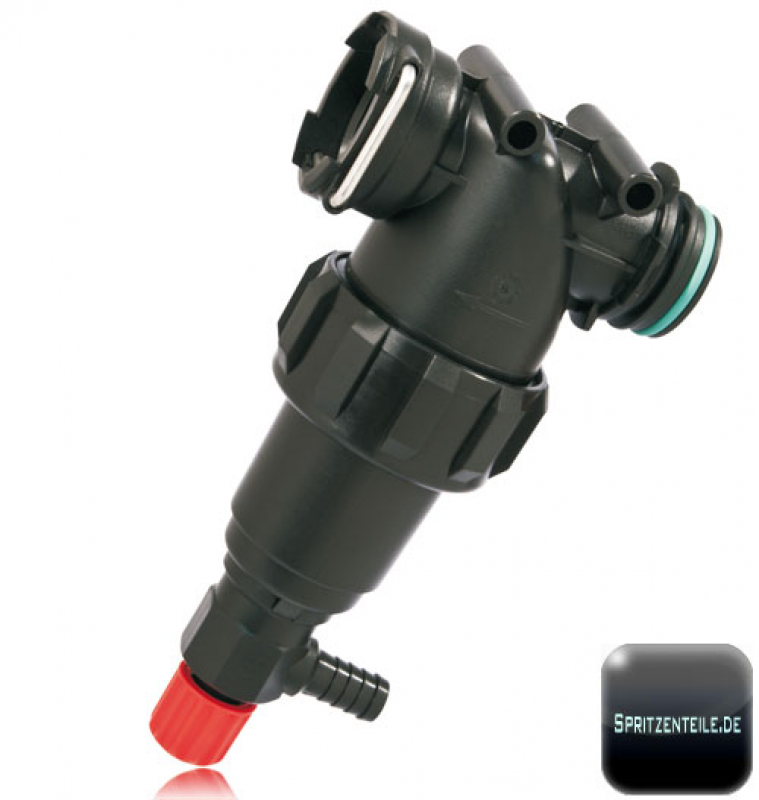

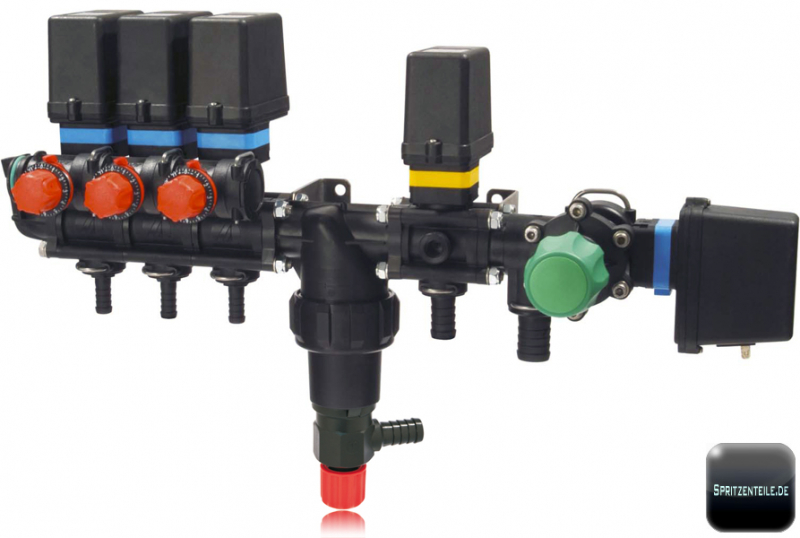

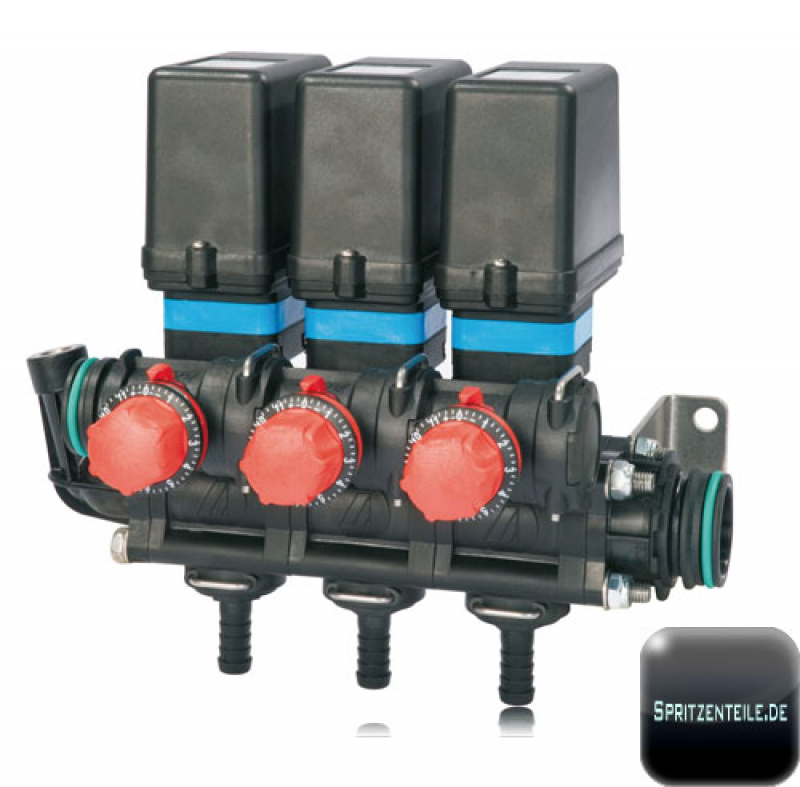

Electrical proportional armature with main control valve and T5 fork connection, from two to nine part-broad, central turning on valve and electrical pressure control valve, optional with pressure filter and flowmeter.
- 12 volt power supply
- Boom section with flow rate max. 44 l/min
- Range of control until 10 bar
- Closely up to 20 bar
- Flow rate electrical pressure control valve max. 60 l/min
- Flow rate main valve max. 150 l/min
- Hose connectors for selection (for further infos see also downloads)
The connection to the valves are the usual cube plugs. Installation at a sprayer or other spraying machine can be easily done via the mounted bracket.
