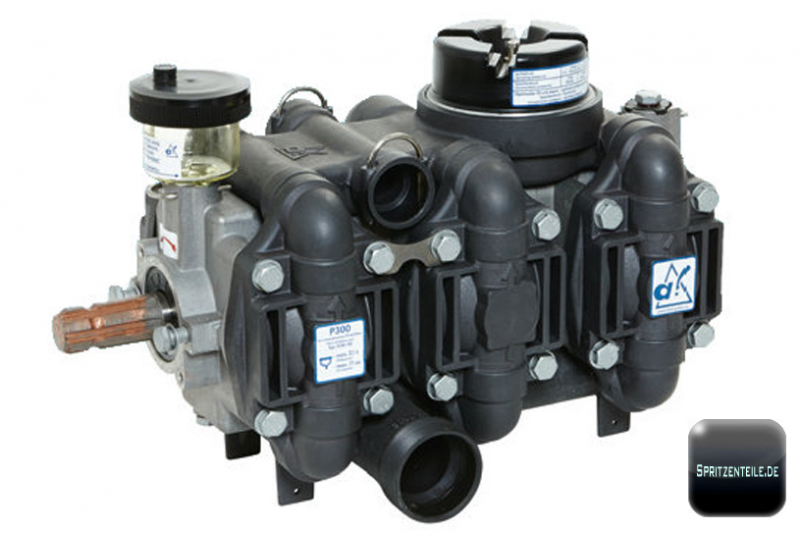

The 6-chamber piston diaphragm pump with 15 bar is characterized by its robustness, longevity and high reliability. Thanks to its compact design, the pump with its flexible design can be easily installed in smaller crop protection sprays. The multi-chamber pumps are designed with the tracked modular principle so that suction and pressure connections can be installed on both the right and left side of the device. Furthermore, it offers a high repair and maintenance friendliness. The piston diaphragm pump P300 has a capacity of 300 l / min at a pressure of 5 bar. The operating pressure is max. 15 bar, short-term pressure of max. 20 bar is possible.
Other features:
- Rated speed: 540 rpm
- Speed range: 450 to 600 rpm
- PTO shaft according to DIN 9611 / ISO 500
- Standard working diaphragm: 6 x NBR
- Pressure storage membrane: 1 x NBR
- Inlet ø Suction side: 2x G2½" BSP male, d=63 mm
- Outlet ø Pressure side: AS40
- Lubrication: oil bath
- Weight: 38 kg
- Material: cast aluminum, partial anodized, stainless steel: 1.4305, NBR seals, POM
