Rau AS30 plug-in fittings 90° with hose connection
Rau angle plug-in grommets AS30 with hose connection
Rau angle plug-in grommets AS30 with hose connection
Preview: Rau AS30 plug-in fittings 90° with hose connection
Preview: Rau angle plug-in grommets AS30 with hose connection
Preview: Rau angle plug-in grommets AS30 with hose connection
Rau angle plug-in grommets AS30 with hose connection
Rau AS30 plug-in fittings 90° with hose connection
Rau angle plug-in grommets AS30 with hose connection
Rau angle plug-in grommets AS30 with hose connection
Mobile Preview: Rau AS30 plug-in fittings 90° with hose connection
Mobile Preview: Rau angle plug-in grommets AS30 with hose connection
Mobile Preview: Rau angle plug-in grommets AS30 with hose connection

Rau angle plug-in grommets AS30 with hose connection

Product No.:
RA09178
if in stock 5-8 days if in stock 5-8 days  (abroad may vary)
Weight:
0.08 kg per piece
from 22,47 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

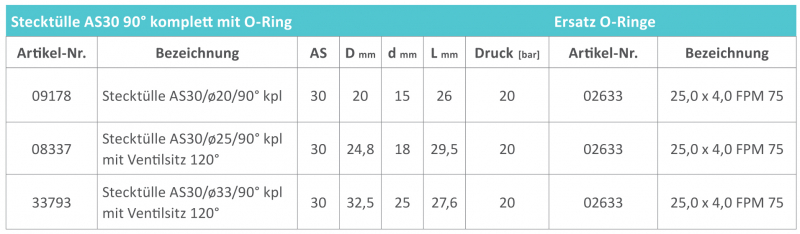

Angled sockets 90 ° with hose connection in various ø sizes are made of glass fiber reinforced plastic. The Quick-Fit plug-in system AS30 with a secure attachment allows many plug-in system variations with commercially available tubing. Seals are made of Viton®. Further data can be found in the table in the figure.
  • for hose ø 20, 25 and 33 mm, please select
  • supplied with O-ring
  • grommets with ø 25 and 33 mm have a conical valve seat of 120°
Information Produktsicherheit

Rau Serta Hydraulik GmbH
Heimenwiesen 60
73230 Kirchheim/Teck - Ötlingen
Deutschland
Tel. 07021-73770
Fax 07021-737720

Sitz und Registergericht Kirchheim/Teck HRB Nr. 231038
Umsatzsteuer-ID-Nummer DE 145912183
Geschäftsführer: Sophie RENNER

This product is compatible with (for example):

Rau O-ring Viton® – different sizes
Rau O-rings for AS connector systems
different sizes available
from 1,34 EUR
Rau Safety plug
Rau Safety plug for AS plug-in system
for AS20, AS24, AS30, AS40 and AS50 available
from 2,16 EUR
